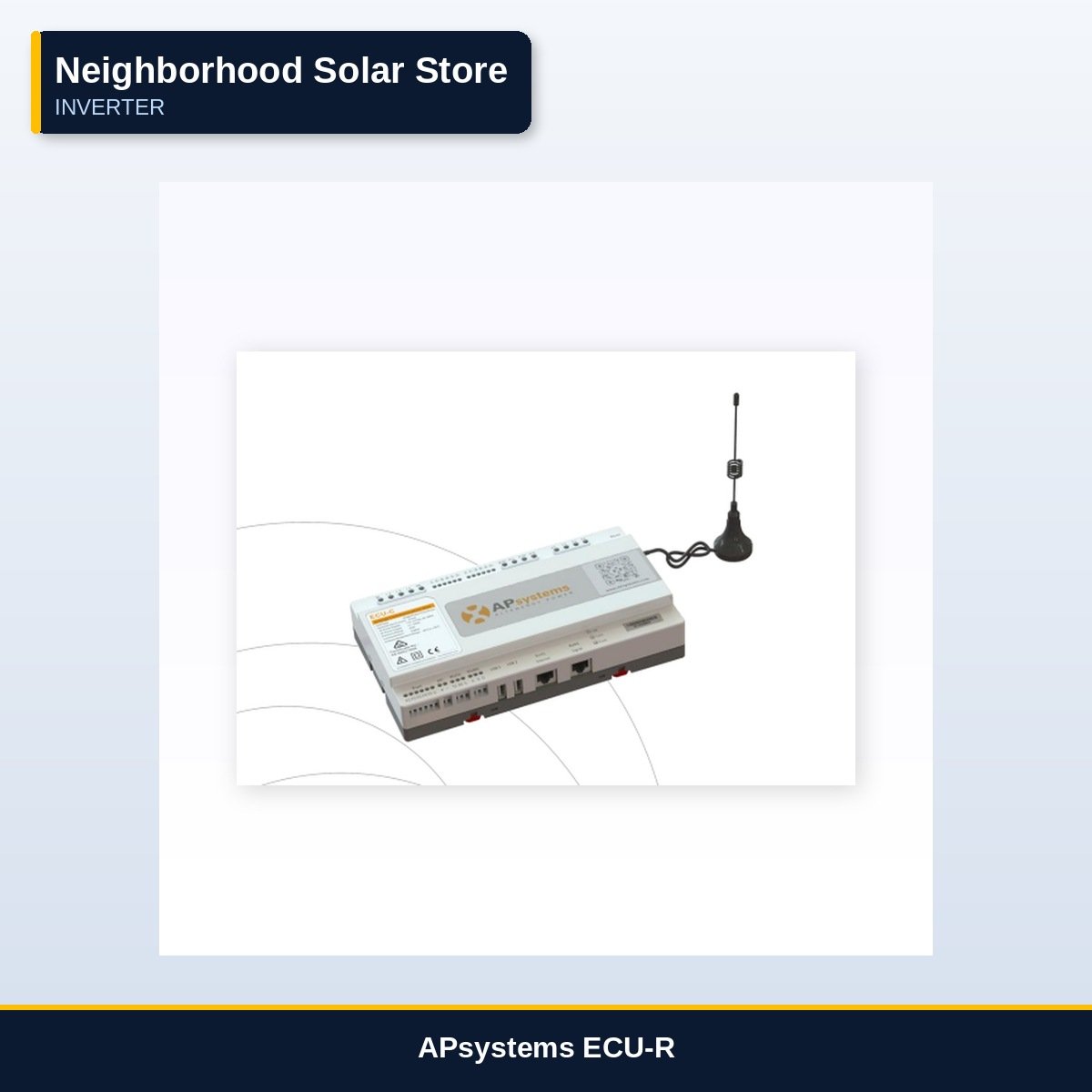

APsystems ECU-R — Zigbee to Wi-Fi Monitoring Gateway

APsystems ECU-R — Zigbee to Wi-Fi Monitoring Gateway

The APsystems ECU-R is the required communications gateway for all APsystems DS3 microinverter installations. It collects real-time performance data from each microinverter via the Zigbee wireless network, translates it to your home Wi-Fi, and uploads to the APsystems EMA cloud platform — giving you panel-by-panel production monitoring from any device, anywhere.

One ECU-R handles up to 30 DS3 units (60 solar panels), making it suitable for most residential and small commercial installations. Setup is simple: plug it in, connect to your Wi-Fi, and your entire array is visible in the EMA app within minutes.

KEY FEATURES • Monitors up to 30 DS3 microinverters (60 solar panels) per unit • Zigbee wireless communication — no additional wiring to each panel • Wi-Fi connected — uploads to APsystems EMA cloud platform • EMA app provides real-time and historical production data per panel • Automatic firmware updates via Wi-Fi • Compact plug-in design — installs near your electrical panel • Required for every APsystems DS3 installation • Supports remote system diagnostics and alerts

TECHNICAL SPECIFICATIONS Communication (to inverters): Zigbee 2.4GHz Communication (to internet): Wi-Fi 2.4GHz (802.11 b/g/n) Max Microinverters Supported: 30 DS3 units (60 panels) Power Supply: 100–240V AC, 50/60Hz Operating Temperature: −20°C to +45°C

NOTE The ECU-R is required for every DS3 installation. One unit is sufficient for residential systems. The companion EMA web portal and mobile app are available free of charge.

COMPATIBLE WITH APsystems DS3 Dual Microinverter · APsystems APS Trunk Cable
