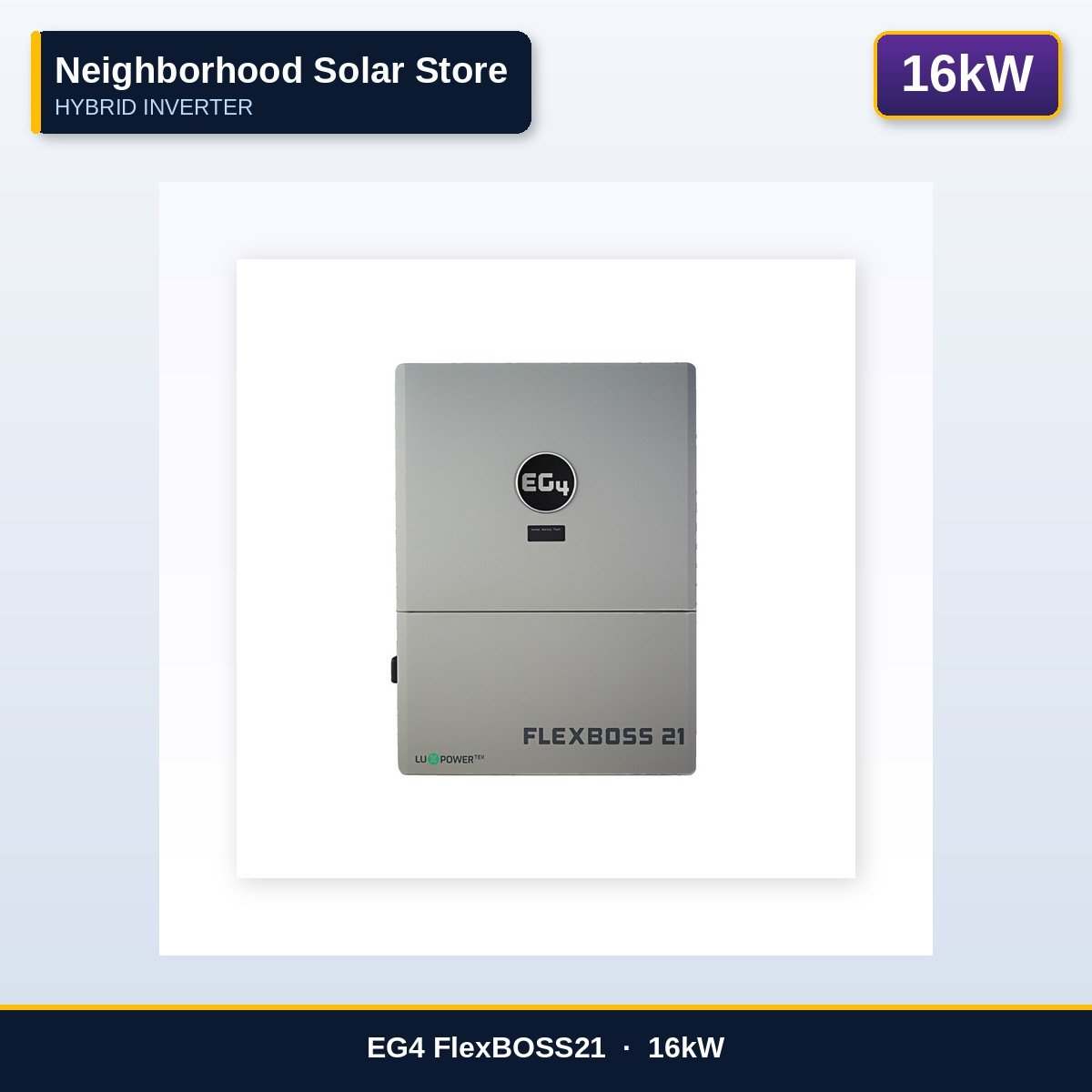

EG4 FlexBOSS21 — 16kW AC-Coupled Hybrid Inverter

EG4 FlexBOSS21 — 16kW AC-Coupled Hybrid Inverter

The EG4 FlexBOSS21 is AC-coupled hybrid inverter that does something most inverters can't — it works with solar arrays that are already installed. If you have an existing string or microinverter system and want to add battery storage, the FlexBOSS does exactly that by coupling on the AC side, eliminating the need to replace or rewire your existing solar equipment.

With 16kW of AC output and up to 21kW of PV input capacity, the FlexBOSS handles large arrays while also providing seamless battery backup during grid outages. It supports most 48V LiFePO4 battery systems and is UL 1741 certified for grid-tied operation in Canada.

KEY FEATURES • AC-coupled design — add batteries to any existing solar system • 21kW maximum PV input — supports large new or existing arrays • 16kW AC output — backs up most whole-home critical loads • Works with microinverters, string inverters, and grid-tied systems • Automatically islands when grid fails — keeps home powered during outages • Compatible with Pylontech, Pytes, EG4, and most 48V LiFePO4 batteries • UL 1741 SA certified — grid-interactive approved for Canada • Built-in energy management and time-of-use programming • Generator input with auto-start capability • Remote monitoring via EG4 app

TECHNICAL SPECIFICATIONS Rated AC Output: 16kW Max PV Input (AC side): 21kW Battery Compatibility: 48V LiFePO4 systems AC Output: 240V/120V Split Phase Operating Temperature: −20°C to +55°C Ingress Protection: IP20

WARRANTY 5-Year Manufacturer Warranty — EG4 Electronics.

CERTIFICATIONS UL 1741 · UL 1741 SA · FCC Part 15 · IEEE 1547

BEST FOR Homeowners with existing solar who want to add battery backup · New hybrid systems requiring high PV input capacity
