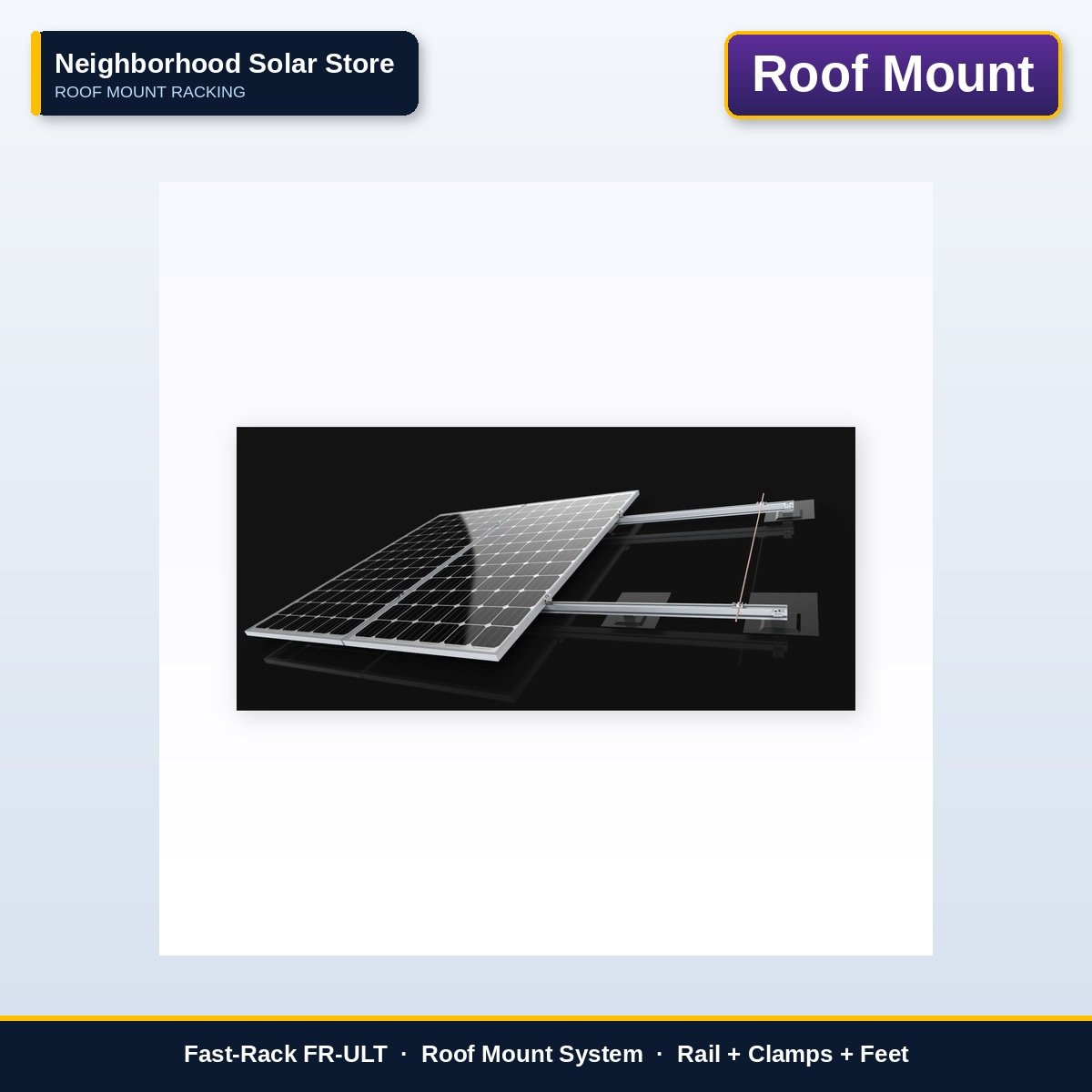

Fast-Rack Roof Mount Racking System (FR-ULT Series)

Fast-Rack Roof Mount Racking System (FR-ULT Series)

The Fast-Rack roof mount racking system is a Canadian-made, CSA-certified solar mounting solution engineered specifically for the demands of Canadian residential and light commercial rooftops. Whether you're installing on asphalt shingles, metal roofing, or low-slope surfaces, Fast-Rack's modular aluminum rail system provides a clean, code-compliant foundation for your solar array.

As a proudly Canadian manufacturer, Fast-Rack understands what prairie weather, heavy snowfall, and freeze-thaw cycles do to rooftop hardware. Their systems are load-rated for these conditions, with wind ratings to 2,400 Pa and snow load ratings to 5,400 Pa — the same certification standards that Canadian building officials and inspectors recognize and accept.

KEY FEATURES • Canadian-made — engineered and manufactured for Canadian conditions • CSA certified — recognized by Canadian building officials and inspectors • UL 2703 bonding and grounding certified — simplifies permit process • Modular aluminum rail — accommodates any panel size or layout • Tool-less mid-clamp system — faster installation vs traditional racking • Works on asphalt shingles, metal roofing, and most residential surfaces • Adjustable for portrait or landscape panel orientation • Compatible with all standard solar panel frame sizes • Wind rated 2,400 Pa, snow rated 5,400 Pa • Includes mounting hardware, rails, clamps, and flashings

TECHNICAL SPECIFICATIONS Material: 6063-T5 Anodized Aluminum Rail Max Wind Load: 2,400 Pa Max Snow Load: 5,400 Pa Compatible Roof Types: Asphalt shingle, metal, low-slope Panel Orientation: Portrait or landscape

WARRANTY 10-Year Product Warranty — Fast-Rack covers the racking system against defects for 10 years.

CERTIFICATIONS CSA Certified · UL 2703 · Made in Canada
