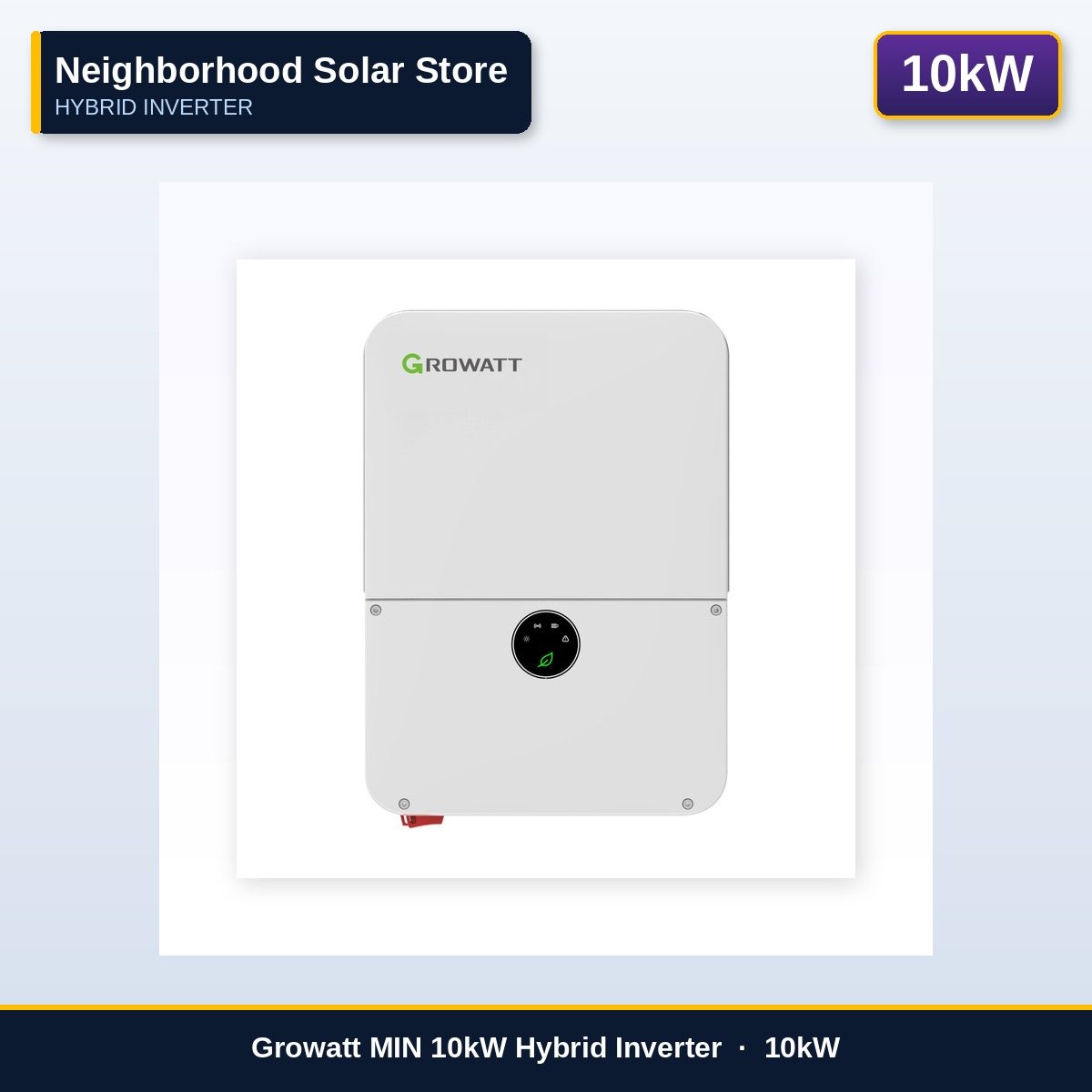

Growatt MIN 10kW Hybrid Inverter (GW-MIN-10000TL-XH-US)

Growatt MIN 10kW Hybrid Inverter (GW-MIN-10000TL-XH-US)

The Growatt MIN 10kW is a capable and affordable hybrid inverter for grid-tied residential solar systems with battery backup. Designed for the North American split-phase market, it delivers 10kW of AC output with dual MPPT inputs and a 48V LiFePO4 battery interface — combining everyday solar production with battery backup for power outages.

Growatt is one of the world's largest inverter manufacturers and a common choice for cost-effective hybrid systems. The MIN series includes built-in Wi-Fi/LAN for monitoring and supports most major 48V LiFePO4 battery brands.

KEY FEATURES • 10kW AC output — 240V/120V split phase • Up to 11.4kW PV input across dual MPPT channels • Dual MPPT — handles two array orientations independently • 48V LiFePO4 compatible — Pylontech, Pytes, EG4, and others • Built-in Wi-Fi/LAN monitoring — Growatt ShinePhone app • Grid-tie with battery backup — net metering supported • Time-of-use programming — charge batteries during off-peak rates • Generator input supported • UL 1741 SA certified — Canada approved

TECHNICAL SPECIFICATIONS Rated AC Output: 10kW Max PV Input: 11.4kW MPPT Channels: 2 Battery Voltage: 40–60V (48V nominal) AC Output: 240V/120V Split Phase Efficiency (peak): 97.5% Operating Temperature: −25°C to +60°C

WARRANTY 5-Year Manufacturer Warranty.

CERTIFICATIONS UL 1741 SA · FCC Part 15 · IEEE 1547
