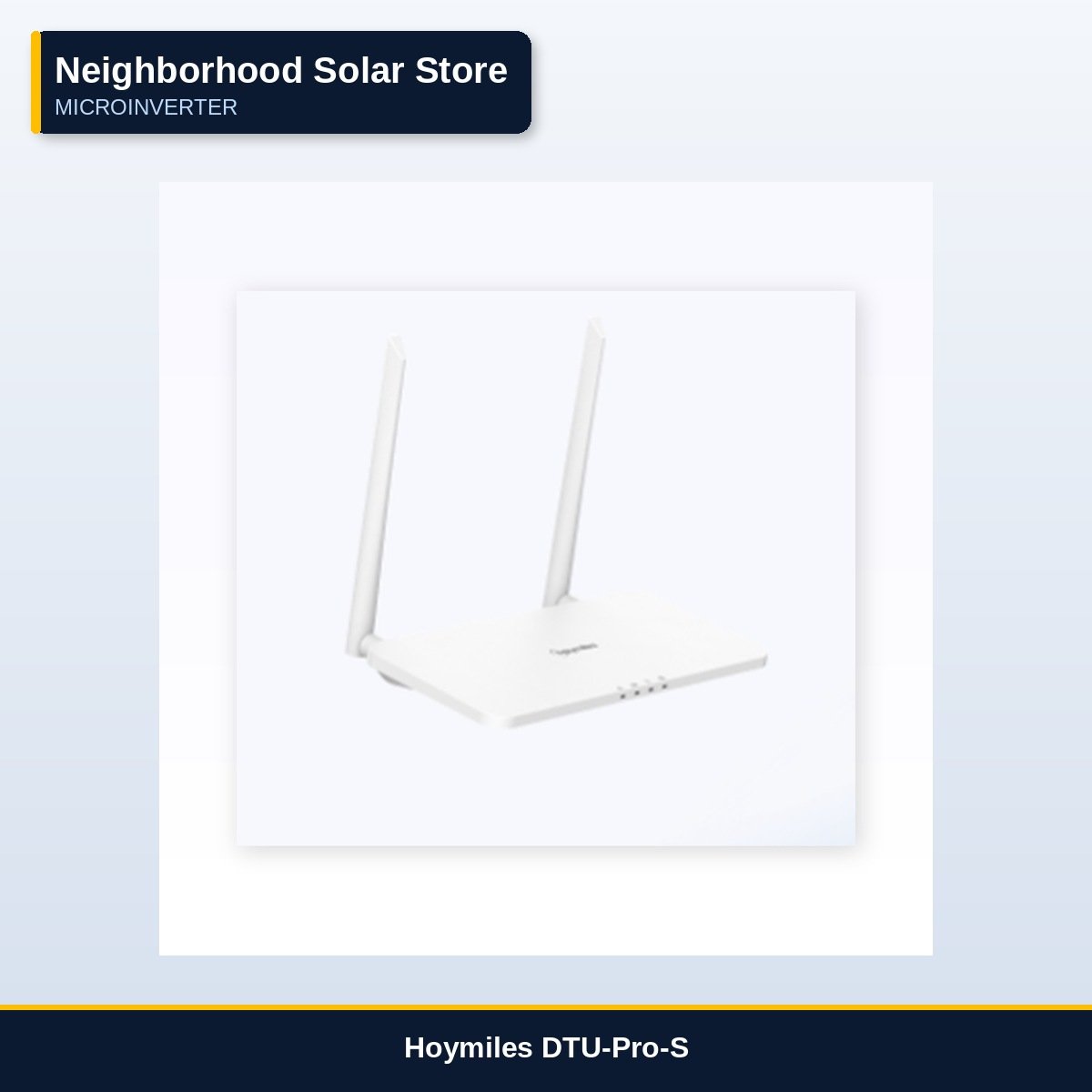

Hoymiles DTU-Pro-S — Monitoring Gateway for HMS Microinverters

Hoymiles DTU-Pro-S — Monitoring Gateway for HMS Microinverters

The Hoymiles DTU-Pro-S is the required monitoring gateway for all Hoymiles HMS microinverter installations. It communicates wirelessly with each HMS unit on the roof, collects real-time production data panel by panel, and uploads it to the Hoymiles S-Miles Cloud for remote access via web or mobile app.

The DTU-Pro-S supports up to 99 microinverters (up to 396 solar panels) on a single gateway — making it suitable for everything from a small residential system to a large commercial array. Setup takes minutes: mount it, connect to Wi-Fi, and your system is online.

KEY FEATURES • Supports up to 99 Hoymiles microinverters per unit • Wireless communication to each inverter — no additional cabling • Wi-Fi upload to S-Miles Cloud for remote monitoring • Panel-level production visibility — real-time and historical • System alerts for underperforming panels or communication faults • Compatible with HMS-1600NT and other HMS-series microinverters • Compact wall-mount design — installs near your electrical panel

TECHNICAL SPECIFICATIONS Max Microinverters Supported: 99 units (396 panels) Communication (to inverters): 2.4GHz wireless Communication (to internet): Wi-Fi 2.4GHz (802.11 b/g/n) Power Supply: 100–240V AC Operating Temperature: −20°C to +45°C

NOTE The DTU-Pro-S is required for every HMS microinverter installation. Without it, monitoring and remote diagnostics are unavailable.

COMPATIBLE WITH Hoymiles HMS-1600NT Microinverter
