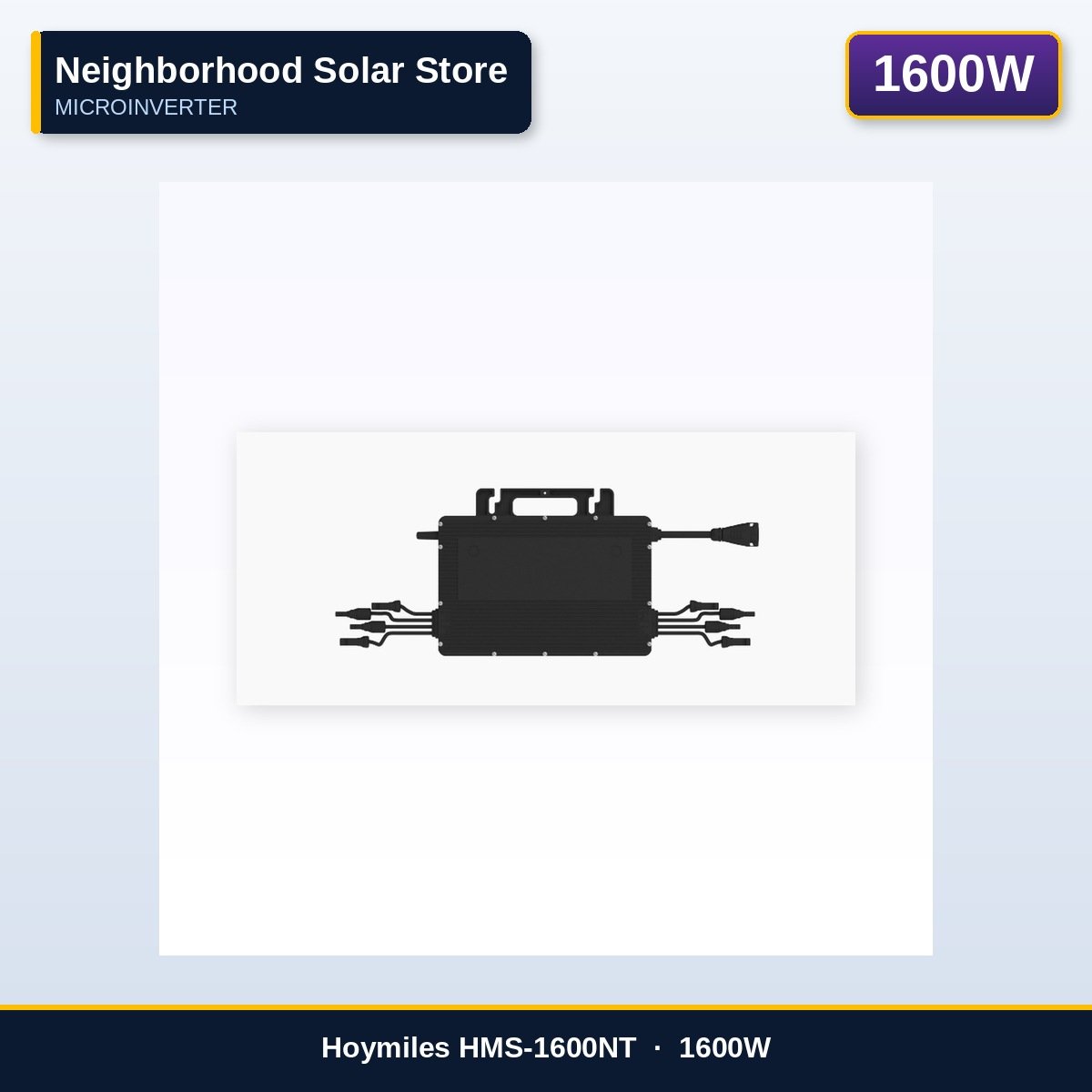

Hoymiles HMS-1600NT — 1600W Quad Microinverter

Hoymiles HMS-1600NT — 1600W Quad Microinverter

The Hoymiles HMS-1600NT is a high-output quad microinverter that connects four solar panels in a single unit, delivering up to 1600W of AC output per device. As one of the highest-output microinverters available in Canada, the HMS-1600NT is ideal for installations where fewer units mean a simpler, cleaner install with less wiring and fewer connection points on the roof.

Like all Hoymiles microinverters, the HMS-1600NT offers panel-level MPPT, meaning each panel operates at its own maximum independently of the others. Combined with a 25-year warranty and Hoymiles' S-Miles Cloud monitoring platform, this is a professional-grade solution for demanding residential and light commercial installations.

KEY FEATURES • Quad-panel per unit — 1 HMS-1600NT handles 4 solar modules • Up to 1600W AC output (4 × 400W inputs) • Panel-level MPPT — maximum output from every panel independently • 25-year manufacturer warranty • Rapid shutdown compliant — NEC 2017/2020 • Pairs with Hoymiles DTU-Pro-S for monitoring (required, sold separately) • Requires Hoymiles AC Trunk Cable (sold separately) • Wi-Fi reporting via DTU to S-Miles Cloud platform • IP67 waterproof housing — outdoor rated • 0–100% power output limiting — utility compliant

TECHNICAL SPECIFICATIONS Max DC Input Power (per channel): 410W Max AC Output Power (4 channels): 1600W Max Input Voltage: 60V (per channel) MPPT Range: 16–60V AC Output Voltage: 240/208/120V CEC Efficiency: 96.7% Operating Temperature: −40°C to +65°C Ingress Protection: IP67

WARRANTY 25-Year Manufacturer Warranty.

CERTIFICATIONS UL 1741 · FCC Part 15 · IEEE 1547 · IEC 62109-1 · IEC 62109-2

REQUIRED ACCESSORIES Hoymiles DTU-Pro-S (monitoring gateway) · Hoymiles AC Trunk Cable
