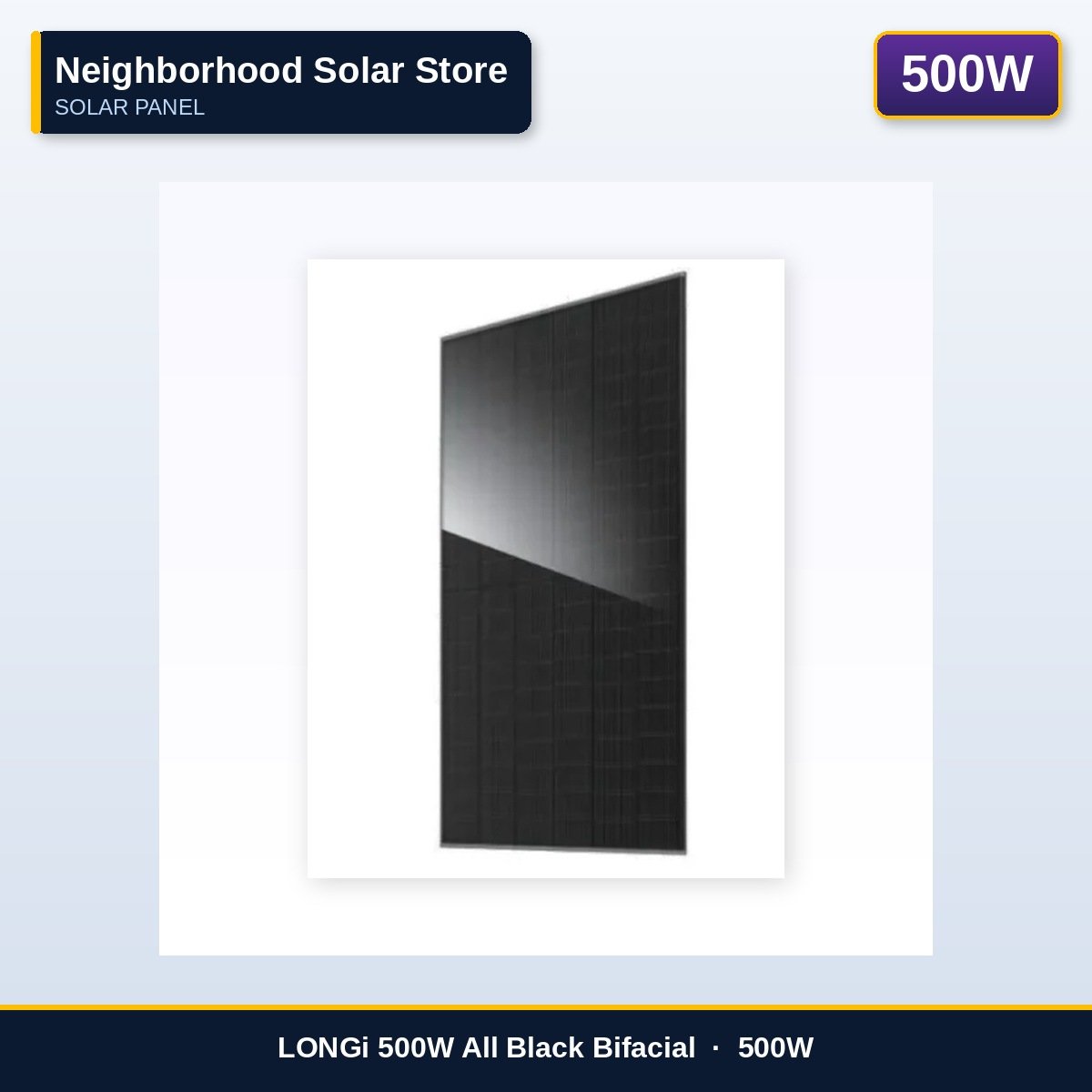

LONGi 500W All Black Bifacial — (LR8-54HGBB-500M)

LONGi 500W All Black Bifacial — (LR8-54HGBB-500M)

The LONGi LR8-54HGBB-500M is a 500W all-black bifacial solar panel that combines the aesthetic appeal of a fully black module with LONGi's advanced N-Type TOPCon cell technology. Designed for homeowners and builders who demand a clean, low-profile look on residential rooftops without sacrificing efficiency, this panel's black frame, black backsheet, and dark cell surface deliver a sleek appearance that blends beautifully with modern rooflines — while still capturing energy from both sides of the glass.

At 500W with up to 21.5% efficiency, the LR8-54HGBB-500M is a compact but powerful 54-cell module. Its smaller physical footprint makes it ideal for roofs with tighter available space or where a premium aesthetic is the priority.

KEY FEATURES • Full all-black aesthetic — frame, backsheet, and cells • N-Type TOPCon bifacial — up to 21.5% module efficiency • Bifacial design captures reflected light for additional energy yield • 54/108 half-cut cells — reduced resistive losses and better shade tolerance • 30mm black anodized aluminum frame — sleek and durable • Dual-glass construction — improved longevity, no PID degradation • Snow load 5,400 Pa, wind load 2,400 Pa • Ideal for new builds, visible roof locations, and premium installs • Positive power tolerance (+0/+5W) • Operates −40°C to +85°C — perfect for Canadian climate

ELECTRICAL SPECIFICATIONS (STC) Maximum Power (Pmax): 500W Open Circuit Voltage (Voc): 47.4V Maximum Power Voltage (Vmp): 39.7V Short Circuit Current (Isc): 13.35A Maximum Power Current (Imp): 12.60A Module Efficiency: Up to 21.5% Power Tolerance: +0 / +5W Temperature Coefficient (Pmax): −0.29%/°C Operating Temperature: −40°C to +85°C

MECHANICAL SPECIFICATIONS Dimensions: 2094 × 1038 × 30mm | Weight: 22.5 kg Cell Type: N-Type TOPCon / Bifacial | Cell Config: 54/108 Half-Cut Frame: Black Anodized Aluminum 30mm | Front Glass: 3.2mm AR Tempered Rear Glass: 2.0mm Tempered Black | Junction Box: IP68 Black | Cable: 1.2m MC4 Black

WARRANTY 12-Year Product Warranty — Full coverage for manufacturing defects and workmanship. 30-Year Linear Power Warranty — ≥98% Year 1, ≤0.4%/year, ≥86.1% at Year 30.

CERTIFICATIONS IEC 61215 · IEC 61730 · UL 61730 · TÜV Rheinland
