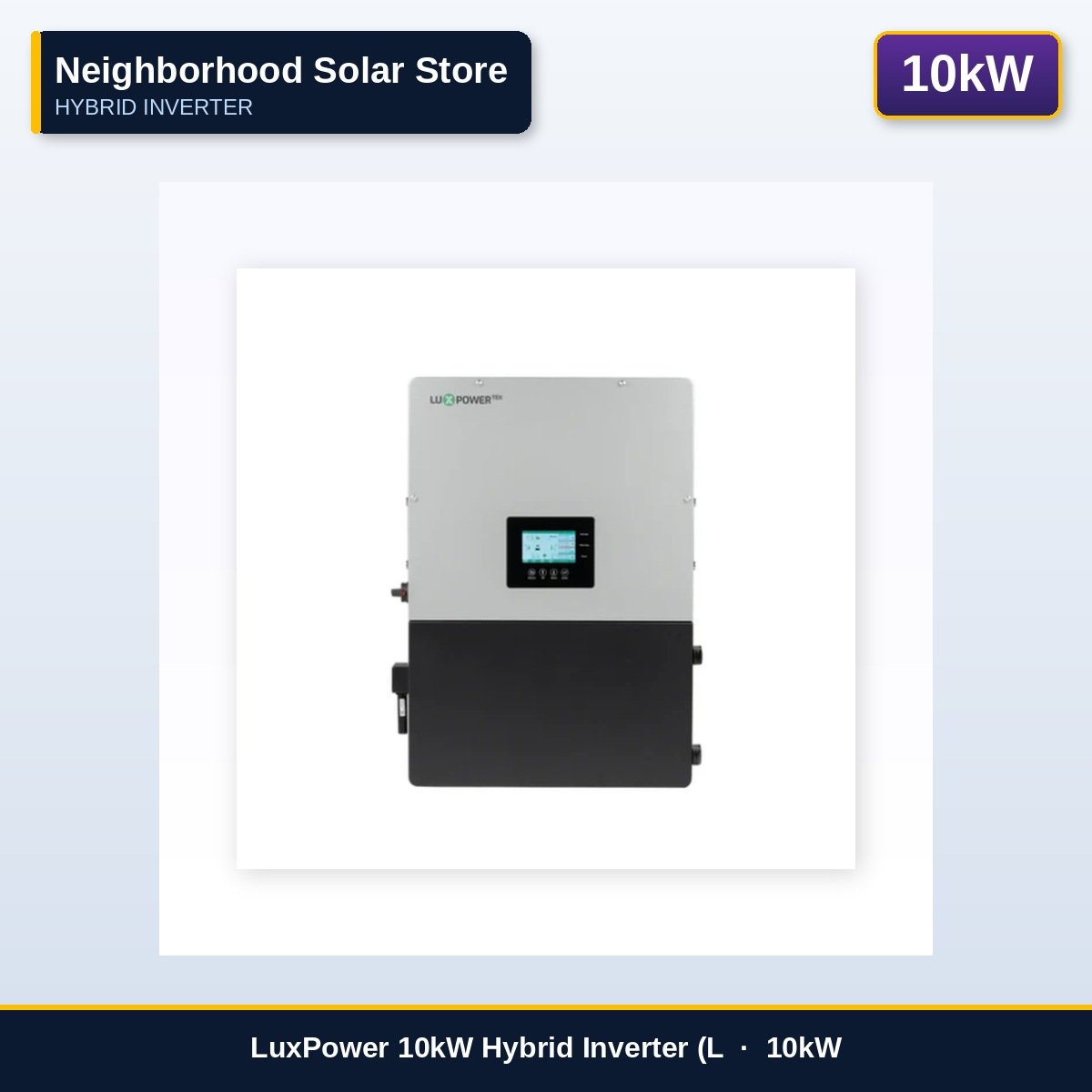

LuxPower 10kW Hybrid Inverter (LXP-LB-US-10K)

LuxPower 10kW Hybrid Inverter (LXP-LB-US-10K)

The LuxPower LXP-LB-US-10K is a 10kW hybrid inverter built for the North American split-phase grid, delivering powerful grid-tied solar + battery storage in a single compact unit. With dual MPPT inputs, a 48V LiFePO4 battery interface, and full 240V/120V split-phase output, this inverter is the backbone of a complete home energy system — solar by day, battery by night, grid as backup.

Designed for residential and light commercial use, the LXP-LB-US-10K is compatible with most 48V LiFePO4 battery banks including Pylontech, Pytes, EG4, and Discover. It connects to the grid for net metering while intelligently prioritizing solar, then battery, then grid — maximizing self-consumption and savings.

KEY FEATURES • 10kW continuous AC output — split phase 240V/120V • 12kW maximum PV input — up to 600V open circuit • Dual MPPT inputs — optimizes two separate array orientations • 48V LiFePO4 battery compatible — Pylontech, Pytes, EG4, Discover, and more • Grid-tie with battery backup — keeps essentials running during outages • Sell surplus power back to the grid with net metering • Built-in Wi-Fi/LAN for monitoring via LuxPower app • Generator input — auto-start/stop generator compatible • Time-of-use (TOU) programming — charge batteries when power is cheapest • Wall-mount design — compact footprint for any utility room

TECHNICAL SPECIFICATIONS Rated AC Output: 10kW Max PV Input: 12kW (VOC max 550V) MPPT Channels: 2 independent Battery Voltage: 40–60V (48V nominal) Max Charge Current: 90A AC Output: 240V/120V Split Phase Efficiency (peak): 97.5% Operating Temperature: −25°C to +60°C Ingress Protection: IP20 (indoor rated)

WARRANTY 5-Year Manufacturer Warranty — Covers manufacturing defects and workmanship. Extended warranty available.

CERTIFICATIONS UL 1741 · FCC Part 15 · IEEE 1547 · ETL Listed

COMPATIBLE BATTERIES Pylontech US5000 · Pytes V5+ · EG4 Indoor/Outdoor · LuxPower PSHIELD · Discover Helios
