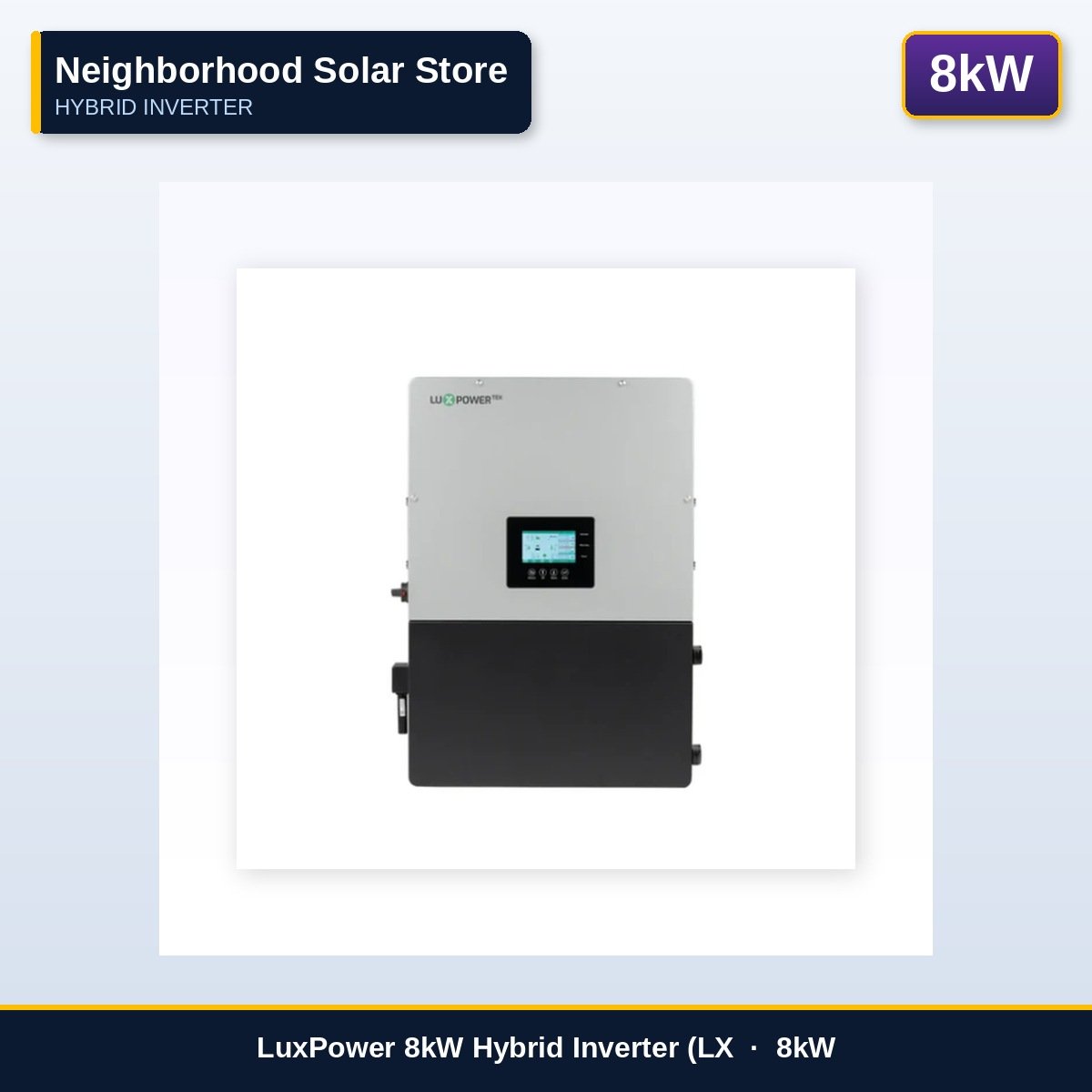

LuxPower 8kW Hybrid Inverter (LXP-LB-US-8K)

LuxPower 8kW Hybrid Inverter (LXP-LB-US-8K)

The LuxPower LXP-LB-US-8K is a 8kW hybrid inverter built for the North American split-phase grid, delivering powerful grid-tied solar + battery storage in a single compact unit. With dual MPPT inputs, a 48V LiFePO4 battery interface, and full 240V/120V split-phase output, this inverter is the backbone of a complete home energy system — solar by day, battery by night, grid as backup.

Designed for residential and light commercial use, the LXP-LB-US-8K is compatible with most 48V LiFePO4 battery banks including Pylontech, Pytes, EG4, and Discover. It connects to the grid for net metering while intelligently prioritizing solar, then battery, then grid — maximizing self-consumption and savings.

KEY FEATURES • 8kW continuous AC output — split phase 240V/120V • 10kW maximum PV input — up to 600V open circuit • Dual MPPT inputs — optimizes two separate array orientations • 48V LiFePO4 battery compatible — Pylontech, Pytes, EG4, Discover, and more • Grid-tie with battery backup — keeps essentials running during outages • Sell surplus power back to the grid with net metering • Built-in Wi-Fi/LAN for monitoring via LuxPower app • Generator input — auto-start/stop generator compatible • Time-of-use (TOU) programming — charge batteries when power is cheapest • Wall-mount design — compact footprint for any utility room

TECHNICAL SPECIFICATIONS Rated AC Output: 8kW Max PV Input: 10kW (VOC max 550V) MPPT Channels: 2 independent Battery Voltage: 40–60V (48V nominal) Max Charge Current: 90A AC Output: 240V/120V Split Phase Efficiency (peak): 97.5% Operating Temperature: −25°C to +60°C Ingress Protection: IP20 (indoor rated)

WARRANTY 5-Year Manufacturer Warranty — Covers manufacturing defects and workmanship. Extended warranty available.

CERTIFICATIONS UL 1741 · FCC Part 15 · IEEE 1547 · ETL Listed

COMPATIBLE BATTERIES Pylontech US5000 · Pytes V5+ · EG4 Indoor/Outdoor · LuxPower PSHIELD · Discover Helios
