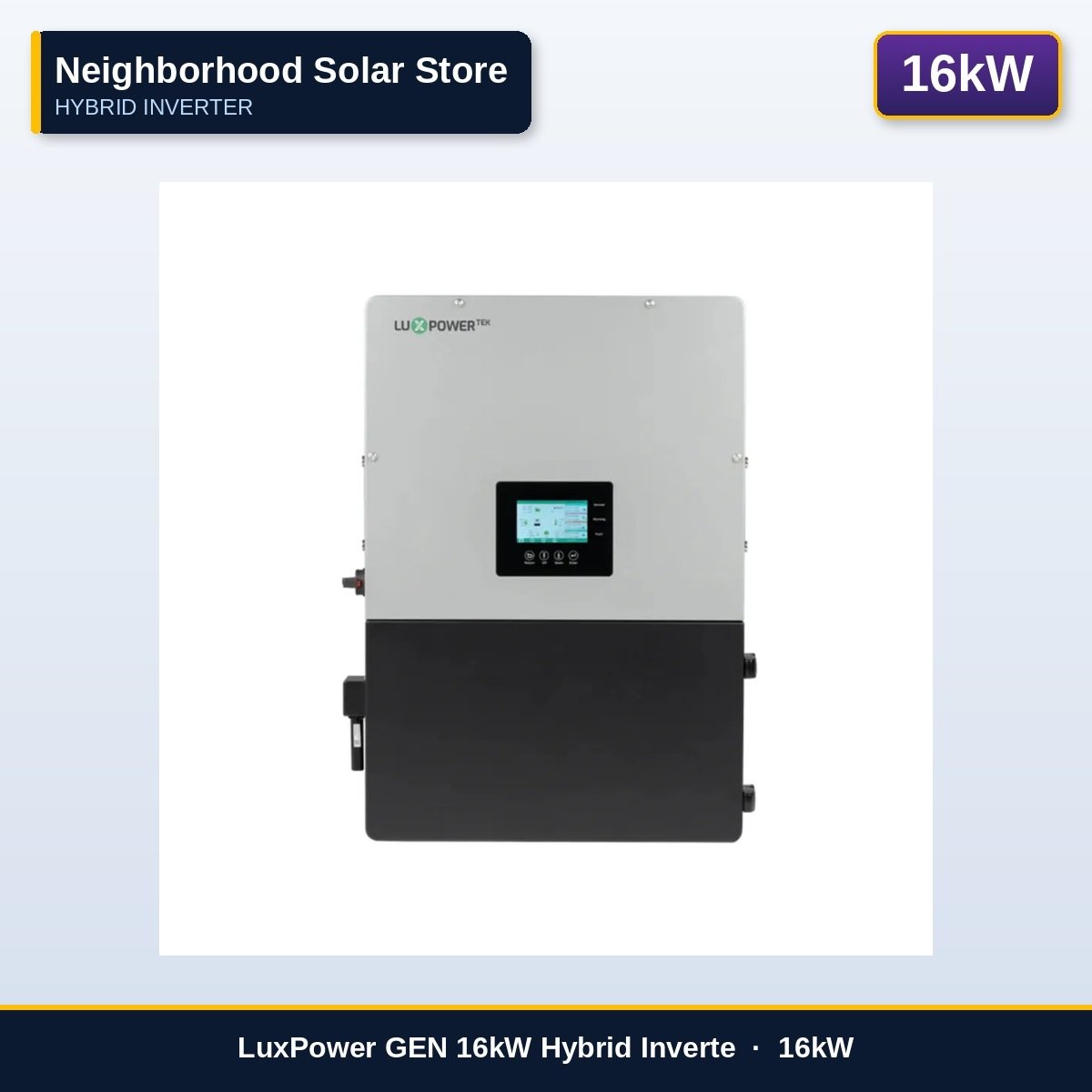

LuxPower GEN 16kW Hybrid Inverter (GEN-LB-US-16K)

LuxPower GEN 16kW Hybrid Inverter (GEN-LB-US-16K)

The LuxPower GEN-LB-US-16K is the high-capacity hybrid inverter in the LuxPower GEN series — designed for larger homes, farms, and commercial properties that need serious solar generation paired with meaningful battery storage. At 16kW AC output with up to 20kW of PV input, this inverter handles arrays that smaller models simply can't — without sacrificing the flexible grid-tie, battery backup, and net metering features that make hybrid systems so valuable.

With dual MPPT inputs and full 240V/120V split-phase output, the GEN-LB-US-16K integrates seamlessly with most 48V LiFePO4 battery systems and works with the utility grid for net metering while keeping battery backup available for outages.

KEY FEATURES • 16kW continuous AC output — 240V/120V split phase • Up to 20kW PV input capacity across dual MPPT channels • 2 independent MPPT inputs — dual-orientation arrays supported • 48V LiFePO4 compatible — Pylontech, Pytes, EG4, LuxPower PSHIELD • Grid-tie with battery backup and net metering support • Time-of-use programming — optimize battery charge timing • Built-in Wi-Fi/LAN monitoring — LuxPower cloud app • Generator input with auto-start capability • Wall-mount, indoor rated installation

TECHNICAL SPECIFICATIONS Rated AC Output: 16kW Max PV Input: 20kW MPPT Channels: 2 Battery Voltage: 40–60V (48V nominal) AC Output: 240V/120V Split Phase Efficiency (peak): 97.6% Operating Temperature: −25°C to +60°C

WARRANTY 5-Year Manufacturer Warranty.

CERTIFICATIONS UL 1741 · FCC Part 15 · IEEE 1547 · ETL Listed · UL 1741 SA
