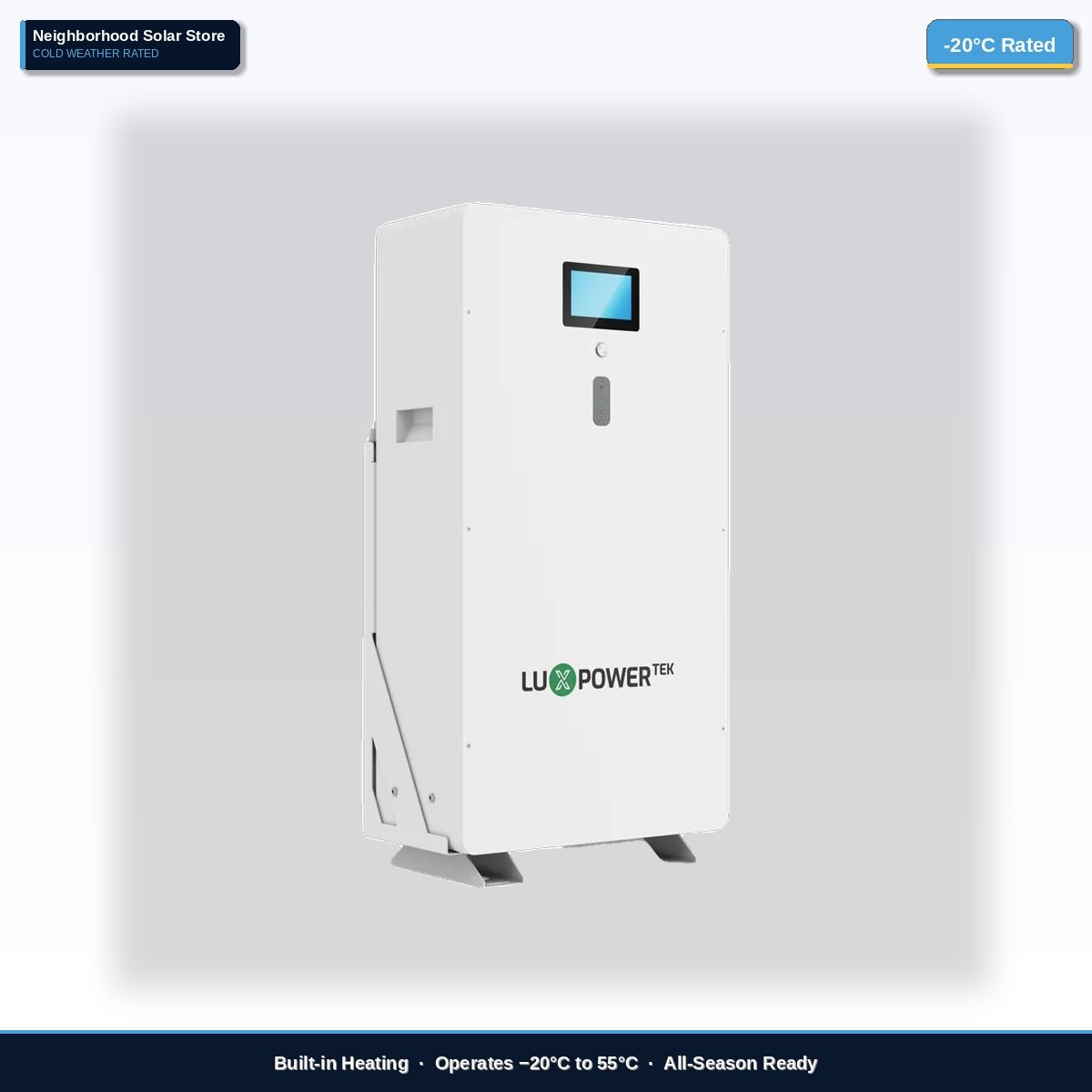

LuxPower PSHIELD 16kWh LiFePO4 Battery System

LuxPower PSHIELD 16kWh LiFePO4 Battery System

The LuxPower PSHIELD is a premium 16kWh all-in-one battery energy storage system that goes well beyond a standard battery module. Built with an integrated fire suppression system, active thermal management including built-in heating for cold-weather operation, and a 316Ah / 51.2V LiFePO4 cell pack, the PSHIELD is designed for installations where safety, longevity, and year-round Canadian performance are the top priorities.

Unlike standard rack-mount or wall-mount batteries, the PSHIELD is a complete ESS (Energy Storage System) in a single cabinet — with its own built-in BMS, thermal management, fire suppression, and communications. It's the right choice for high-value installations, off-grid homes that depend on storage year-round, and any customer who wants the absolute safest battery option available.

KEY FEATURES • 16kWh (316Ah at 51.2V) LiFePO4 energy storage per unit • Integrated fire suppression system — automatic, UL rated • Built-in heating — operates from −20°C to +55°C without performance loss • Active thermal management — maintains optimal cell temperature • All-in-one cabinet design — no separate rack or enclosure required • CAN/RS485 communication — compatible with LuxPower and most hybrid inverters • Parallel expandable — connect multiple PSHIELD units for larger storage • Integrated BMS with cell-level monitoring and protection • UL 1973 listed and IEC 62619 certified

TECHNICAL SPECIFICATIONS Nominal Capacity: 316Ah / 16kWh Nominal Voltage: 51.2V Usable Capacity: ~14.4kWh (90% DoD) Continuous Discharge: 100A Operating Temperature: −20°C to +55°C (with heating) Heating System: Built-in electric heating elements Fire Suppression: Integrated automatic system

WARRANTY 5-Year Manufacturer Warranty — LuxPower.

CERTIFICATIONS UL 1973 · IEC 62619 · UN 38.3 · CE

BEST FOR Off-grid systems · Cold climate installations · High-value properties requiring maximum safety · Unheated battery rooms
