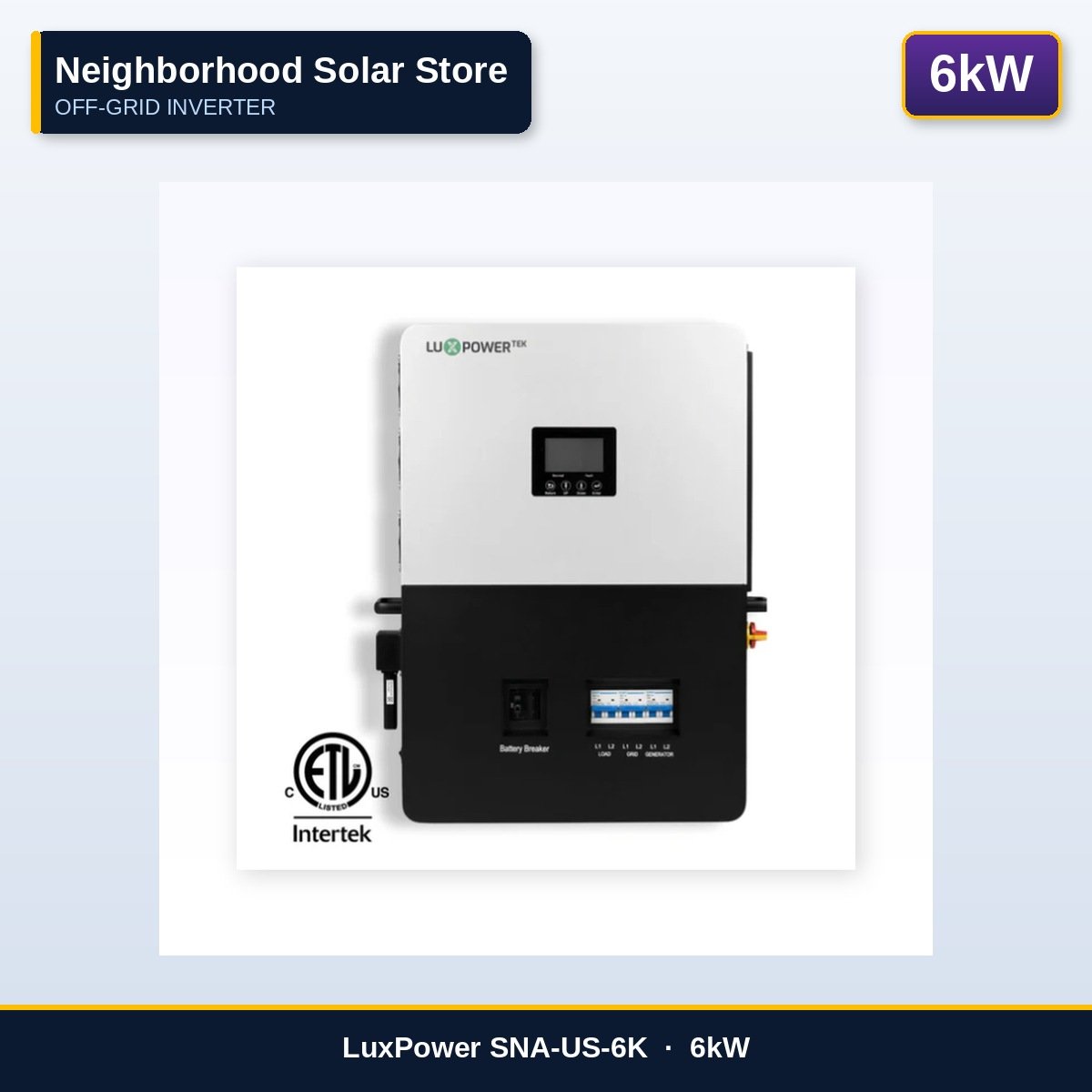

LuxPower SNA-US-6K — 6kW Off-Grid Inverter

LuxPower SNA-US-6K — 6kW Off-Grid Inverter

The LuxPower SNA-US-6K is a 6kW pure off-grid inverter purpose-built for cabins, rural properties, acreages, and remote sites that have no access to utility power — or simply choose not to be connected. Unlike hybrid inverters that rely on a grid reference to operate, the SNA-6K creates its own stable 240V/120V split-phase output independently, making it the core of any true off-grid energy system.

With dual MPPT inputs, a 90A battery charger, and Intertek cULus certification, the SNA-6K is one of the most capable and safety-certified off-grid inverters available in Canada. It accepts a wide range of panel voltages and charges 48V LiFePO4 battery banks reliably through four seasons of Canadian weather.

KEY FEATURES • 6kW continuous AC output — 240V/120V split phase, no grid required • Dual MPPT inputs — up to 500V VOC, handles two array orientations • 90A battery charger — charges 48V LiFePO4 banks from solar or generator • Generator input with auto-start/stop capability • Operates standalone — creates its own grid, no utility connection needed • Intertek cULus certified — recognized for Canadian installations • Compatible with Pylontech, Pytes, EG4, and most 48V LiFePO4 systems • Selectable output frequency 50/60Hz • LCD display with real-time monitoring • IP20 indoor rated — designed for battery room or utility room installation

TECHNICAL SPECIFICATIONS Rated AC Output: 6,000W Max PV Input: 7,500W (VOC max 500V) MPPT Channels: 2 independent Battery Voltage: 40–60V (48V nominal) Max Charge Current: 90A (solar) + 120A (AC) AC Output: 240V/120V Split Phase Efficiency (peak): 93% Operating Temperature: −25°C to +55°C Ingress Protection: IP20

WARRANTY 5-Year Manufacturer Warranty.

CERTIFICATIONS UL 1741 · ETL Listed · IEC 62109-1 · IEC 62109-2 · Intertek cULus Certified

COMPATIBLE BATTERIES Pylontech US5000 · Pytes V5+ · EG4 Indoor/Outdoor · Discover Helios
