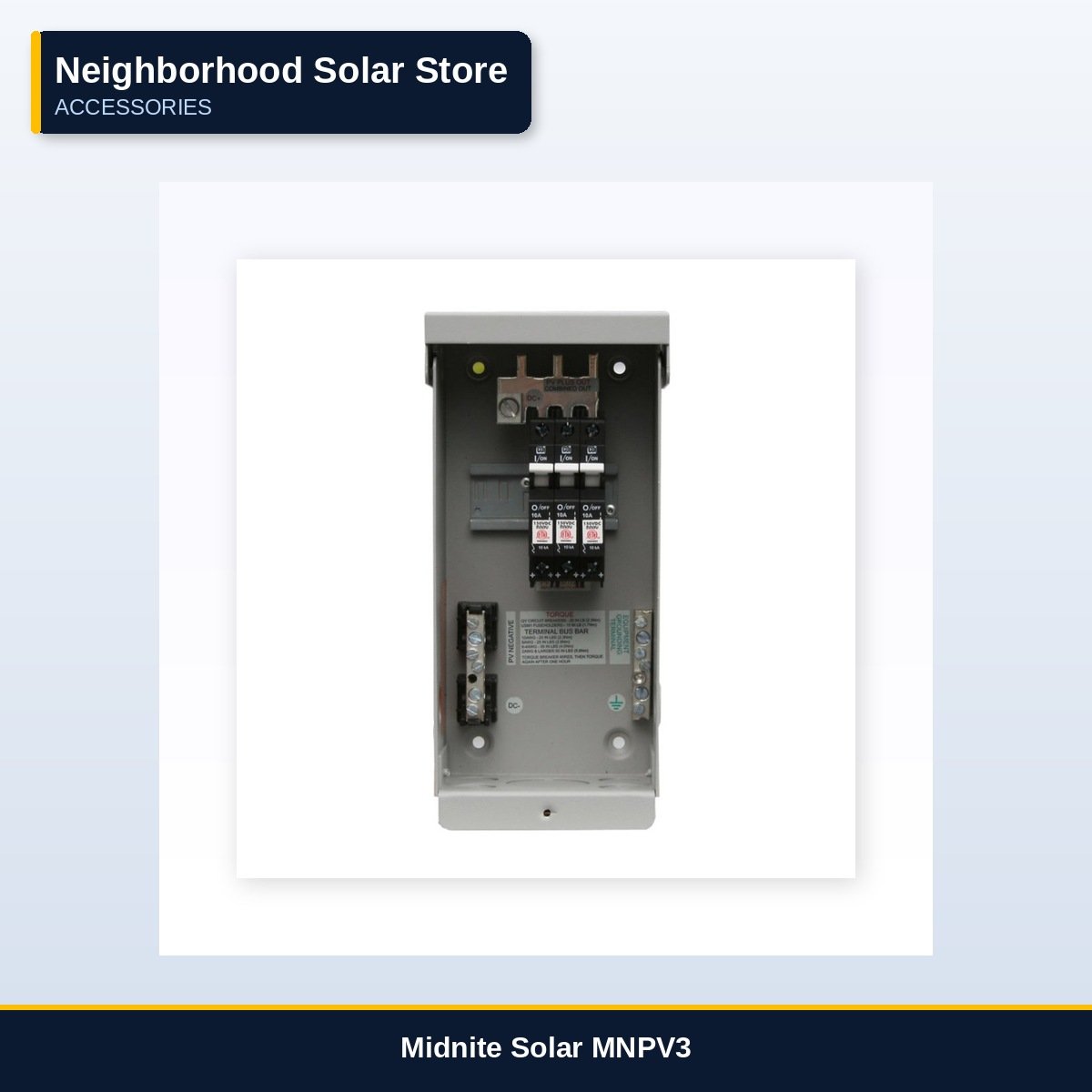

Midnite Solar MNPV3 — 3-Circuit Array Combiner Box

Midnite Solar MNPV3 — 3-Circuit Array Combiner Box

The Midnite Solar MNPV3 is a 3-circuit DC combiner box for solar arrays — combining up to 3 individual string inputs into a single DC output to your charge controller or inverter. Made in the USA by one of the most respected names in solar balance-of-system components, the MNPV3 is a reliable, code-compliant solution for any installation that requires string combining before the inverter.

KEY FEATURES • 3 input circuits — combines up to 3 solar strings into 1 DC output • Accepts 15A DIN-rail breakers (included) — one per circuit • 1000VDC maximum input voltage • cETLus listed — certified for Canadian and US installations • Hinged, weatherproof NEMA 3R enclosure • Accepts 8–10 AWG wire per circuit • Grounding bar included • Made in USA — Midnite Solar, Burlington, WA

TECHNICAL SPECIFICATIONS Max Input Circuits: 3 Max Input Voltage: 1000VDC Max Current per Circuit: 15A (standard breakers) Enclosure Rating: NEMA 3R Operating Temperature: −40°C to +60°C

WARRANTY 5-Year Manufacturer Warranty.

CERTIFICATIONS cETLus Listed · UL 1741 · Made in USA
