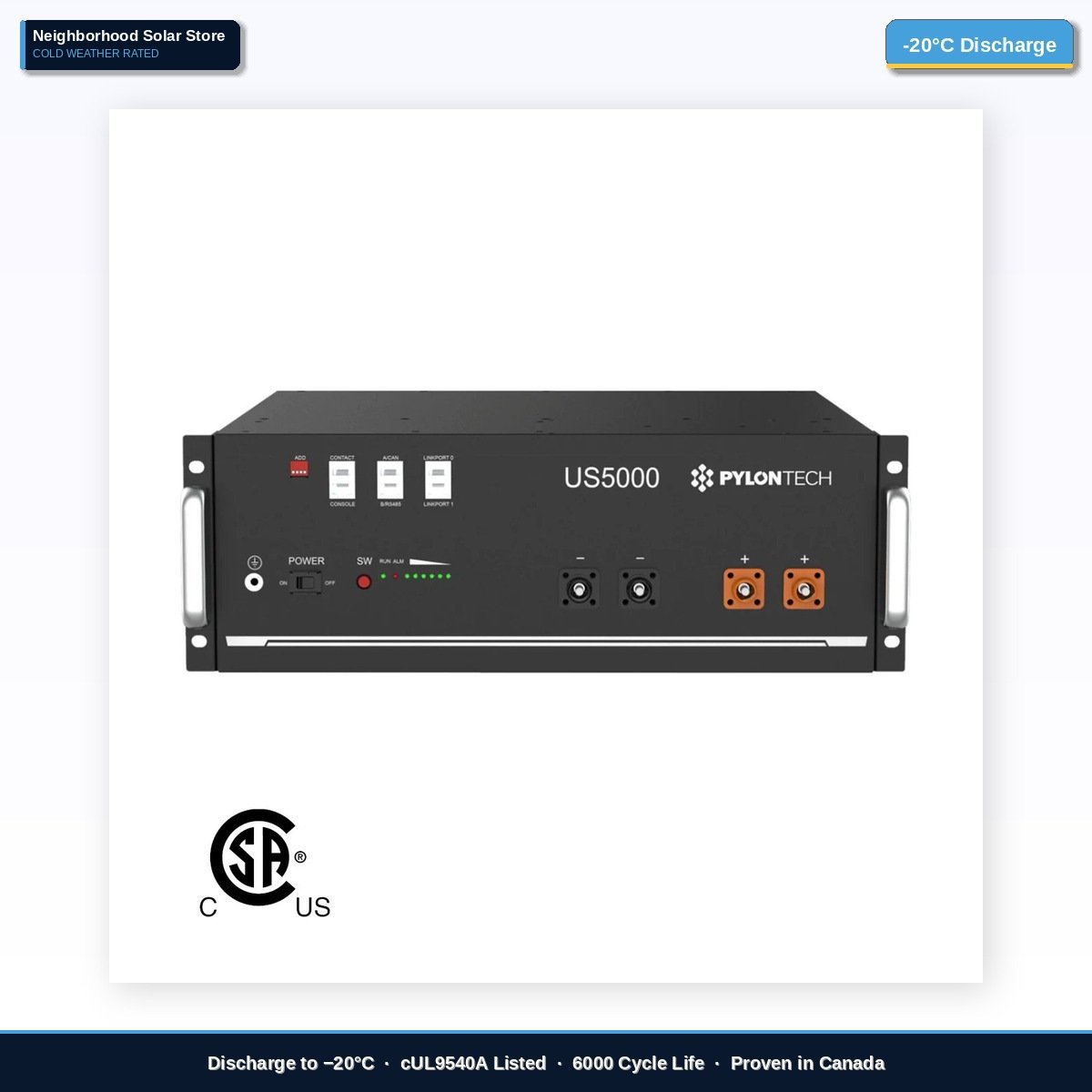

Pylontech US5000 — 4.8kWh LiFePO4 Battery Module

Pylontech US5000 — 4.8kWh LiFePO4 Battery Module

The Pylontech US5000 is one of the most widely installed residential battery modules in the world — and for good reason. With a proven track record spanning millions of installations across dozens of countries, the US5000 represents what happens when a manufacturer with 20+ years of lithium battery experience applies that knowledge to residential solar storage. It's reliable, well-supported, and designed to still be working 15–20 years from now.

Each US5000 module stores 4.8kWh at 48V, with a 90% depth of discharge and a 6,000-cycle rating — meaning it can charge and discharge every single day for over 16 years before reaching 80% of its original capacity. Modules stack in a standard 19-inch rack and connect to each other via CAN bus for parallel expansion up to 16 units per string.

KEY FEATURES • 4.8kWh usable capacity per module at 48V nominal • 6,000 cycle rating at 25°C, 80% depth of discharge • 90% depth of discharge — virtually the full capacity is usable • LiFePO4 chemistry — safest lithium chemistry, no thermal runaway risk • Rack-mount design — standard 19-inch rack compatible • Parallel expandable up to 16 units per string (multiple strings supported) • CAN/RS485 communication — compatible with most hybrid inverters • Built-in BMS — protects against overcharge, over-discharge, over-temperature • Discharge rated to −20°C — operates year-round in Canadian winters • cUL 9540A listed — recognized for Canadian installations

TECHNICAL SPECIFICATIONS Nominal Capacity: 100Ah / 4.8kWh Nominal Voltage: 48V Usable Capacity: 90% DoD (~4.3kWh) Continuous Discharge: 100A Peak Discharge: 150A (30 sec) Charge Current (standard): 74A Cycle Life: 6,000 cycles @ 25°C, 80% DoD Discharge Temp Range: −20°C to +55°C Charge Temp Range: 0°C to +50°C Dimensions: 442 × 420 × 132mm (3U rack) Weight: 54 kg

WARRANTY 10-Year Manufacturer Warranty — Pylontech covers the US5000 for 10 years against defects and capacity loss below 60% of rated capacity.

CERTIFICATIONS cUL 9540A · IEC 62619 · UN 38.3 · CE · CSA

COMPATIBLE INVERTERS LuxPower LB/SNA series · EG4 FlexBOSS · Growatt MIN series · Solis LV series · Most 48V hybrid inverters
