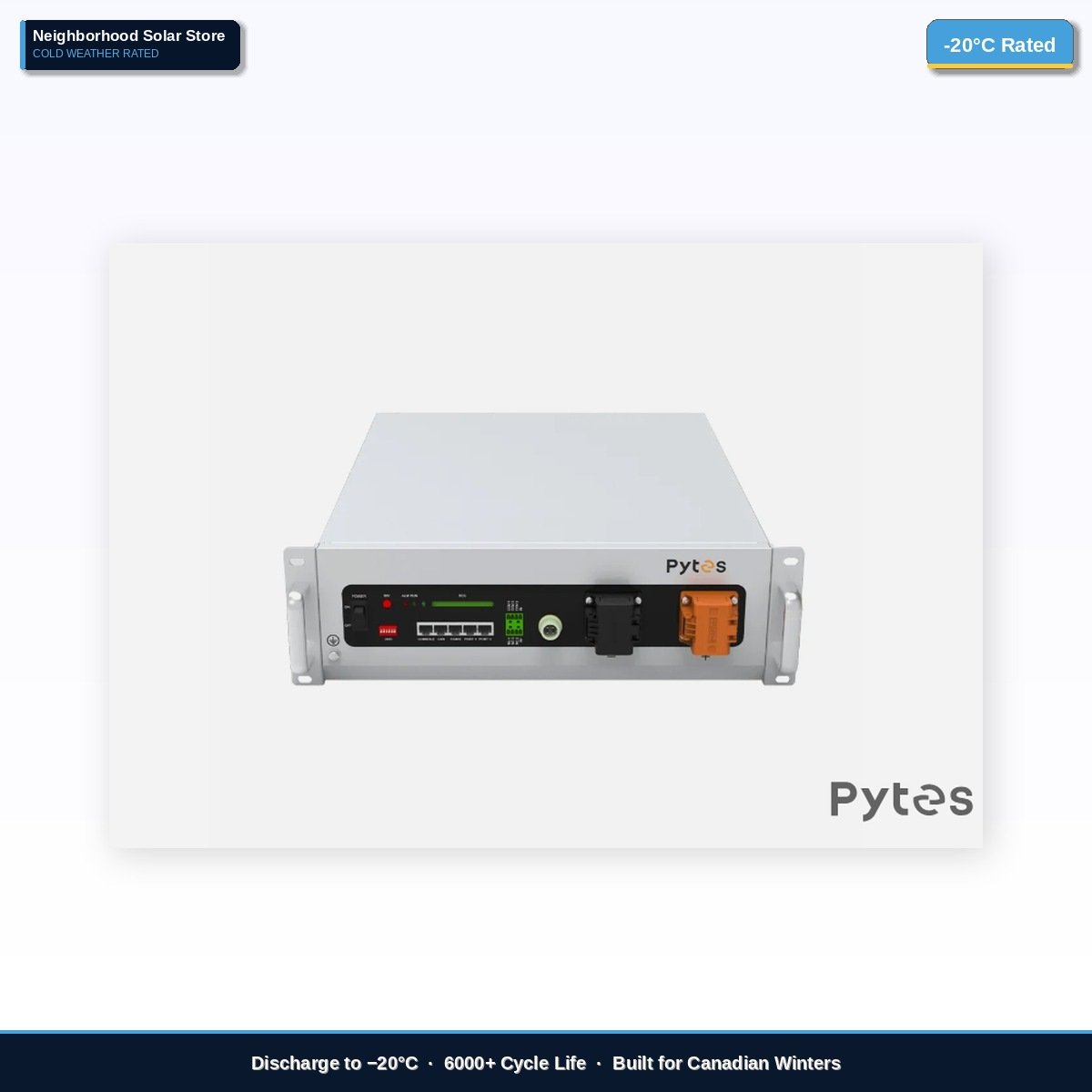

Pytes V5+ — 5.12kWh LiFePO4 Battery Module (PY-V5PLUS-5.12)

Pytes V5+ — 5.12kWh LiFePO4 Battery Module (PY-V5PLUS-5.12)

The Pytes V5+ is a high-quality 5.12kWh LiFePO4 battery module built for residential and commercial solar storage. With a 6,000+ cycle rating, 90% depth of discharge, and the ability to discharge in temperatures down to −20°C, the V5+ is an excellent choice for Canadian properties that need reliable storage through all four seasons.

Pytes is a lithium battery specialist with deep LiFePO4 manufacturing expertise, and the V5+ reflects that — delivering consistent capacity, clean BMS communication with major inverter brands, and a build quality that holds up over time. Modules stack vertically and connect in parallel for systems up to 64kWh, making the V5+ scalable from a small backup system to a substantial off-grid storage bank.

KEY FEATURES • 5.12kWh capacity per module — 100Ah at 51.2V nominal • 6,000+ cycle life at 80% depth of discharge • 90% depth of discharge — nearly full capacity usable • LiFePO4 chemistry — thermally stable, no fire or explosion risk • Discharge rated to −20°C — proven for Canadian winters • CAN/RS485 communication — compatible with LuxPower, Solis, EG4, Growatt • Parallel expandable — connect multiple modules for larger banks • Modular wall-mount or floor-stand design with optional V5 bracket • Built-in BMS with cell-level protection and balancing • UL 1973 listed

TECHNICAL SPECIFICATIONS Nominal Capacity: 100Ah / 5.12kWh Nominal Voltage: 51.2V Usable Capacity: 90% DoD (~4.6kWh) Continuous Discharge: 100A Max Charge Current: 100A Cycle Life: 6,000+ cycles @ 25°C, 80% DoD Discharge Temp Range: −20°C to +55°C Charge Temp Range: 0°C to +50°C Dimensions: 442 × 420 × 132mm Weight: ~53 kg

WARRANTY 10-Year Manufacturer Warranty — Pytes covers the V5+ for 10 years.

CERTIFICATIONS UL 1973 · IEC 62619 · UN 38.3 · FCC

COMPATIBLE INVERTERS LuxPower LB/GEN/SNA series · Solis LV series · Growatt MIN series · EG4 FlexBOSS · Most 48V/51.2V hybrid inverters
