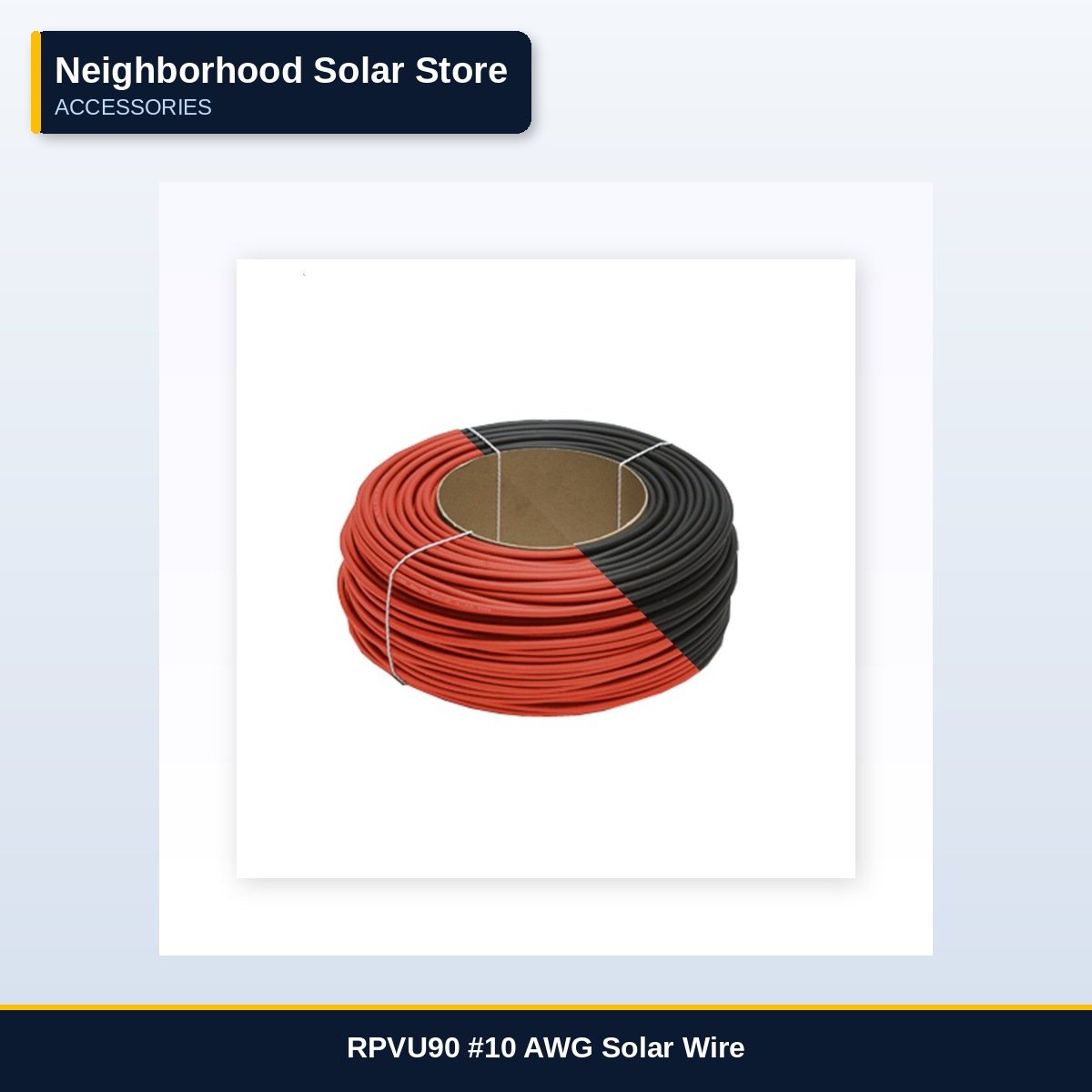

RPVU90 #10 AWG Solar Wire — 100-Metre Spool (Red or Black)

RPVU90 #10 AWG Solar Wire — 100-Metre Spool (Red or Black)

RPVU90-rated #10 AWG stranded copper wire on a 100-metre spool, CSA and UL listed for use in solar photovoltaic systems. This is the standard wire used for home-run wiring between your solar combiner box and your inverter, for grounding, and for any in-conduit DC wiring in your solar installation.

RPVU90 is rated for 90°C wet/dry environments, UV resistance, and direct burial — making it suitable for any indoor or outdoor solar wiring application that requires a flexible, code-compliant copper conductor.

KEY FEATURES • RPVU90 rated — 90°C wet/dry, UV resistant, direct burial capable • #10 AWG stranded copper — rated for 30A in solar DC applications • 100-metre (328ft) spool — sufficient for most residential and small farm installations • CSA and UL listed — accepted by Canadian electrical inspectors • Available in red (positive) and black (negative) — order one of each for a complete run • Flexible stranded construction — easier to pull through conduit vs solid wire

TECHNICAL SPECIFICATIONS Wire Gauge: #10 AWG (5.26mm²) Conductor: Stranded Copper Insulation Rating: RPVU90 — 90°C wet, UV resistant CSA/UL Listed: Yes Spool Length: 100 metres

COMPATIBLE USE Solar PV home runs · DC combiner to inverter wiring · Grounding conductors · Any in-conduit solar DC wiring
