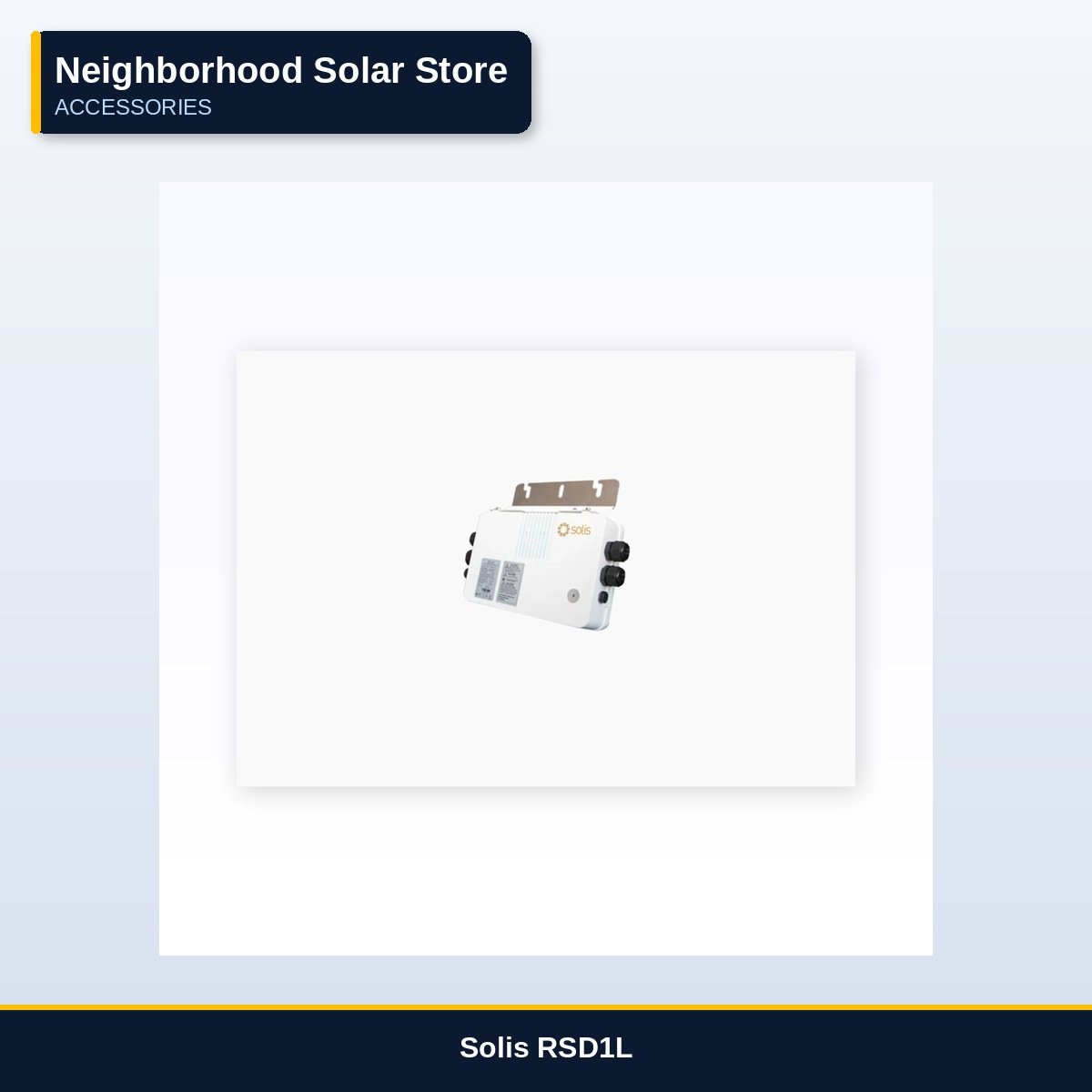

Solis RSD1L — String-Level Rapid Shutdown Device (1-In / 1-Out)

Solis RSD1L — String-Level Rapid Shutdown Device (1-In / 1-Out)

The Solis RSD1L is a string-level rapid shutdown (RSD) device designed to meet NEC 2014 and later rapid shutdown requirements for rooftop solar installations in Canada. It works with Solis inverters equipped with the built-in RSD transmitter to cut DC voltage at the array within seconds of a shutdown signal, protecting firefighters and first responders.

The RSD1L handles one string input and one output — suitable for systems with a single PV string per MPPT channel, or where individual string control is required.

KEY FEATURES • String-level RSD — cuts DC voltage at the array, not just at the inverter • 1 input / 1 output — one string per unit • Works with Solis inverter RSD transmitter (included with Solis S6 inverters) • NEC 2014, 2017, and 2020 rapid shutdown compliant • IP65 weatherproof housing — outdoor/rooftop rated • 10-year manufacturer warranty

TECHNICAL SPECIFICATIONS Configuration: 1-In / 1-Out Max Input Voltage: 1000VDC Max Input Current: 20A Ingress Protection: IP65 Operating Temperature: −40°C to +85°C

WARRANTY 10-Year Manufacturer Warranty — Solis.

COMPATIBLE WITH Solis S6-EH1P inverters (7.6K, 10K, 11.4K) — requires inverter's built-in RSD transmitter
