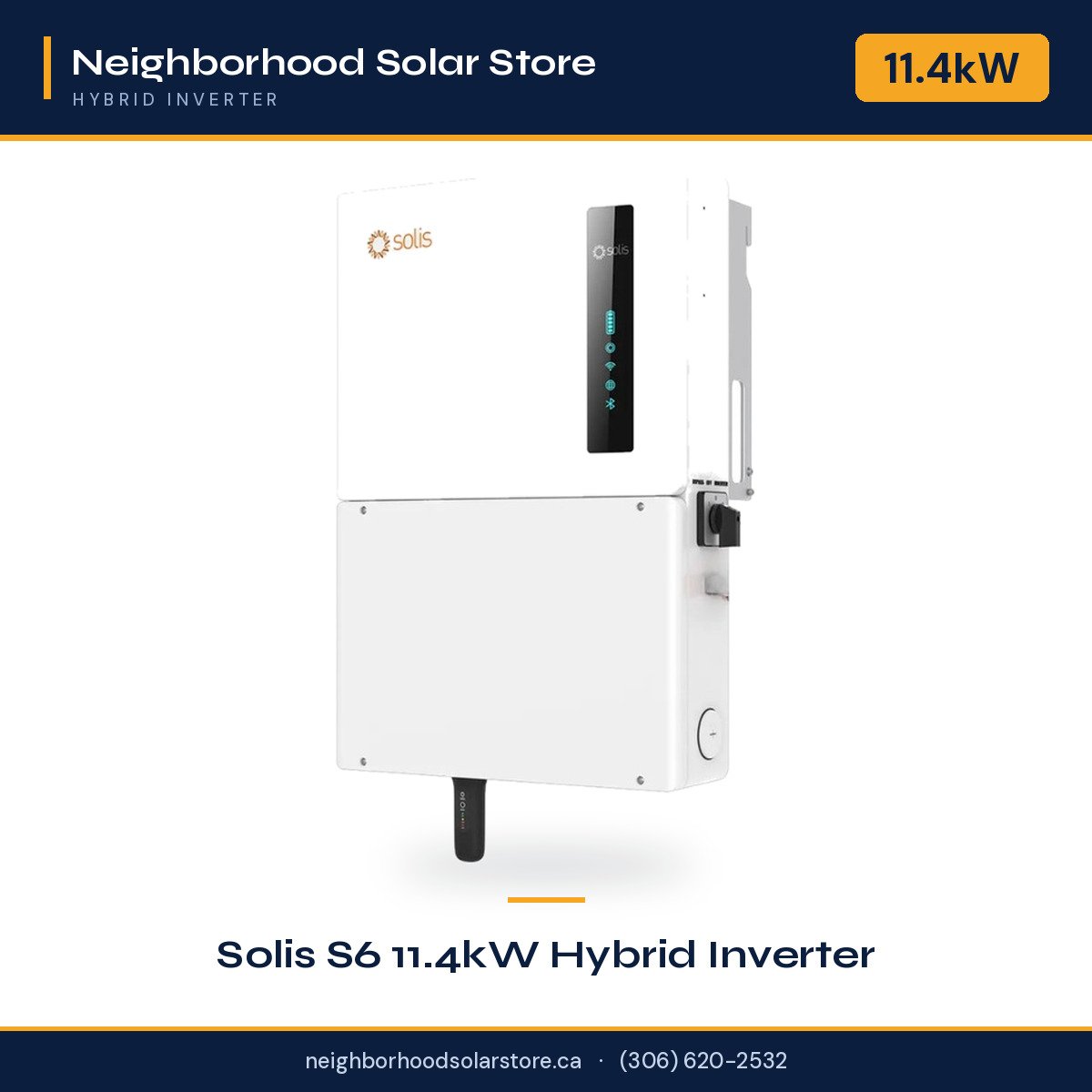

Solis S6 11.4kW Hybrid Inverter (S6-EH1P)

Solis S6 11.4kW Hybrid Inverter (S6-EH1P)

The Solis S6 11.4kW is a Single Phase hybrid inverter from one of the world's largest dedicated inverter manufacturers. Built on Solis's proven S6 platform, this 11.4kW unit combines aggressive pricing with solid engineering, making it a competitive choice for residential and farm-scale hybrid solar systems in Canada.

The Solis HV 11.4K operates with High Voltage (HV) batteries (HVDC battery stack — 80–450V range), giving system designers flexibility in how they size and configure energy storage. With 4 independent MPPT inputs, the S6 series handles complex roof orientations and large bifacial arrays better than dual-MPPT competitors.

KEY FEATURES • 11.4kW AC output — single phase output • 4 independent MPPT inputs — maximum flexibility for complex arrays • Compatible with High Voltage (HV) systems (HVDC battery stack — 80–450V range) • Includes APS RSD transmitter — rapid shutdown pre-wired • 10-year manufacturer warranty — competitive for this price point • Remote monitoring via Solis Cloud app and S2-WL WiFi stick • Grid-tie with battery backup — net metering support • Generator input capability • Wide PV input voltage range — compatible with most module configurations • UL 1741 SA and SB certified for Canadian grid-tied installations

TECHNICAL SPECIFICATIONS Rated AC Output: 11.4kW MPPT Channels: 4 independent Battery Type: High Voltage (HV) AC Output: 120V (single phase) Efficiency (peak): 97.7% Ingress Protection: IP65 (outdoor rated) Operating Temperature: −25°C to +60°C

WARRANTY 10-Year Manufacturer Warranty — Solis covers this inverter for 10 years against defects and failure.

CERTIFICATIONS UL 1741 SA · UL 1741 SB · UL 1699B · IEEE 1547 · FCC Part 15 · CSA C22.2 · IEEE 2030.5

COMPATIBLE BATTERIES High Voltage battery stacks (80–450V DC)
